Charge Carrier for Bomb Tramway

is used to transport multiple charges by bomb tramway to the detonation points

Ladungsabwerfer

Function

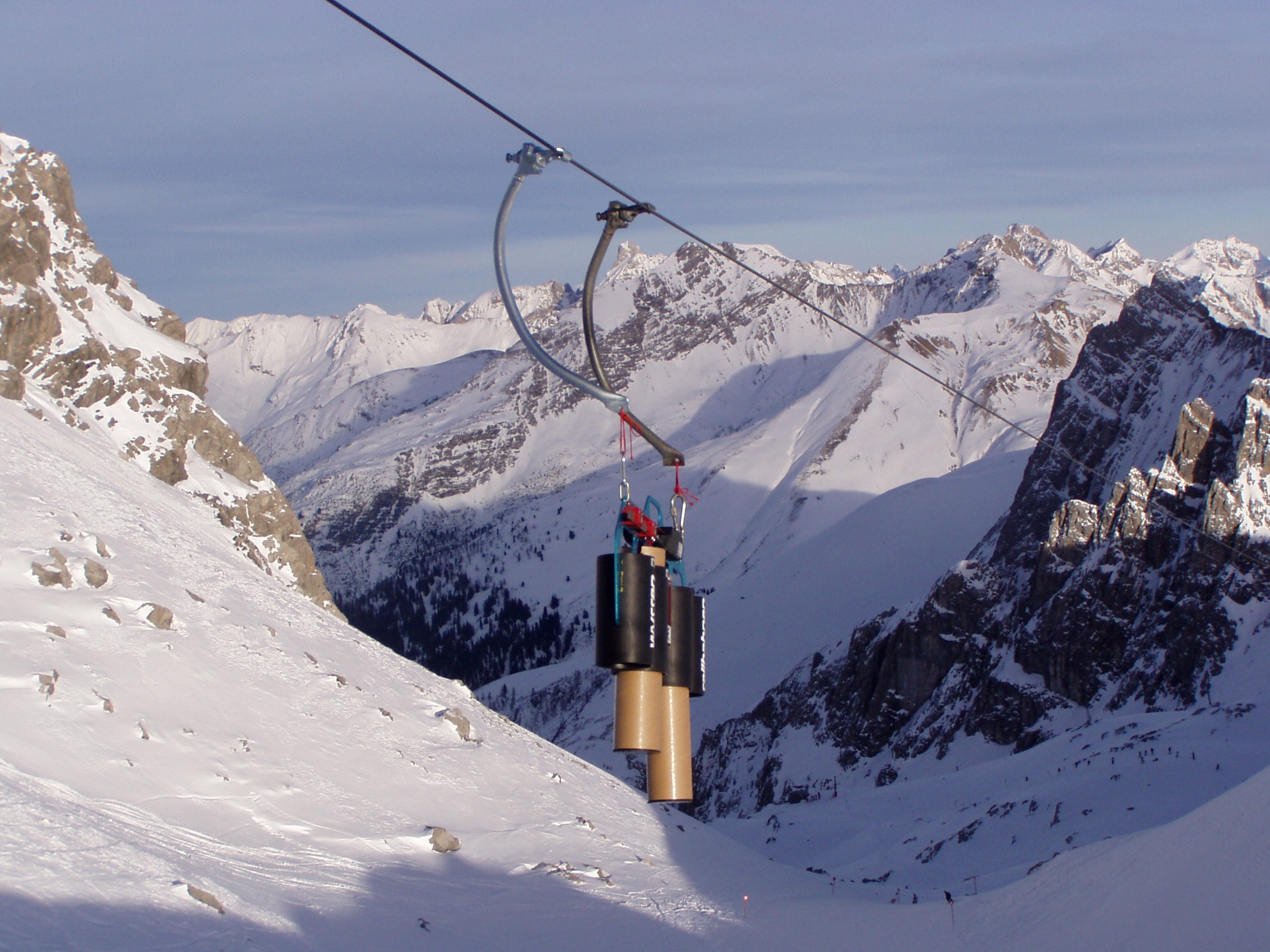

The charge carrier is used to transport multiple charges by bomb tramway to the detonation points. Triggering takes place using a normal portable radio transceiver. After actuation of the orange release button, the charge can be dropped by pressing the trigger button. After the detonation, the retaining line can be dropped using the same button, so that supports can be by-passed without any problem. During the fall, a double ignition occurs and the charge detonates on the retaining cable while suspended over the snow cover. The blasting height over the snow can be varied by the length of the retaining line.

Advantages

  • blasting above the snow
  • massive saving of time by reduction of the number of runs
  • weather-independent and rapid triggering
  • the device can be used in several cableways
  • Low weight of 11 kg resp. 16 kg
  • No personnel in danger area
Ladungsabwerfer
Motorola-GP-340-VHF_eng

Radio telephone for triggering the charge dropper

Technical data

GENERAL Charge Carrier LA2-5 Charge Carrier LA4-5
Weight (without charges) 11 kg 16 kg respectively
Dimensions (l x b x h) 608 mm x 160 mm x 538 mm 1037 mm x 160 mm x 538 mm
LOAD CAPACITY
Number of Charges per Carrier 2 pcs 4 pcs
Amount of explosives per charge 2 - 5 kg
POWER SUPPLY
Battery 12 V
MECHANICAL SYSTEM
Drive unit 12V linear drive
Deployment mechanism slider bar
DATA TRANSMISSION
Radio transceiver in device Motorola GP 340 VHF
Radio trancseiver on operator Motorola GP340, 360, 380, 388, etc.
Transmitting-Frequency 170MHz range
Approval for radios to be approved per country
